500t Hydropower Station Gantry Crane Double Girder Dam Gate Crane
Product Description
The Hydropower gantry crane is the crane which use the A-frame to support and keep it standing on the rail track of ground and bases. It could travel along the rail track and train and cars could through under the A-frame. Portal crane have hoisting,slewing,luffing traveling mechanism,there are lift and tilt frame beam or combination beam and control room on the spiral parts.The Hydro-power gantry crane has some additional device: belt conveyor to improve the working capacity rate of the crane to grab the bulk cargo. There are also motor protection device,overload stopper device and crane rail clamp etc.safety device.
Drawing and Specification
| Lifting Weight (t) | 100 | 125 | 200 | 250 | 320 | 350 | 400 | 450 |
| Group Classification | A2,A3 |
| Span (m) | 16 | 13 | 12 | 8.5 | 14 | 12 | 12 | 8 |
| Lifting Range (m) | Main Lifting Mechanism | 20 | 90 | 50 | 70 | 69 | 80 | 90.5 | 65 |
| Working Speed (m/min) | Main Lifting Mechanism | 2.8 | 2.16 | 2.06 | 2.2 | 2.5 | 2.2 | 2.22 | 2.2 |
| Traversing Mechanism | 6.2 | 8.18 | 5.38 | 4.86 | 6 | 4.25 | 2.08 | 2.08 |
| Traveling Mechanism | 22 | 23.3 | 22 | 22.2 | 20 | 14.85 | 21.6 | 19.5 |
| Main Dimensions (mm) | H | 29300 | 30142 | 29395 | 25530 | 30500 | 31258 | 30452 | 30599 |
| B | 1600 | 15937 | 14300 | 14300 | 14381 | 18085 | 13800 | 12800 |
| b | 2500 | 2500 | 2800 | 2500 | 3000 | 3750 | 1386 | 2400 |
| W | 9000 | 9000 | 8500 | 9200 | 9000 | 9200 | 9600 | 8500 |
| w1 | 960 | 960 | 960 | 960 | 960 | 1100 | 1100 | 1100 |
| w2 | 1100 | 1100 | 1100 | 1100 | 1100 | 1800 | 1800 | 1800 |
| H1 | 1200 | 800 | 815 | 815 | 880 | | | 3356 |
| H2 | 13172 | 13172 | 10055 | 7680 | 11330 | 13758 | 18800 | 13428 |
| h | 15000 | 15000 | 18000 | 15370 | 15500 | 2300 | 16500 | 15000 |
| h1 | 13000 | 13000 | 22000 | 16000 | 12500 | 15000 | 16500 | 12000 |
| L | 13000 | 13000 | 12000 | 9000 | 9000 | 7550 | 6000 | 10000 |
| Max. Wheel Load (KN) | P1 | 550 | 6O2 | 550 | 480 | 740 | 865 | 975 | 910 |
| P2 | 485 | 500 | 480 | 480 | 620 | 645 | 805 | 910 |
| Total Motor Power (KW) | 104.5 | 104.5 | 241 | 270 | 271 | 329.5 | 364 | 376.5 |
| Power Supply | 3-Phase AC 380v 50Hz |
Advantages
1.Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong and elegant. Suitable for different operation temperature;
2. Lifting mechanism: Reducer, drum, motors protection class F class, China or World top quality motor brands, such as Jiamusi, Nanjing motor, ABM, etc;
3. Hook: Finest steel forged hook, long using life;
4. Wheels: Vacuum casting, with compact structure, convenient maintenance, high transmission efficiency and long service life;
5. Travel mechanism: With China or world famous crane motor, reducer supplier, such as Nanjing motor, SEW etc;
6. Electrics: Chint, Schneider or Siemens etc.
Features
1.Widly used in hydropower station, river and water conservancy facilities.Features:
2.Especially for FLAT/SLUICE GATE hoisting and lowering.
3.Single or double lifting points on optional.
4.Hoisting slings is wire rope, pulley block falling from drums;
5.Electric motorized, Centralized drive or individual drive.
6.Manual drive assemblied when electric fail.
7.Overload limiter, height indicator are all included. etc.
Package and Delivery
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by Woven bag.
3.Shipped by Conatiners or Bulk Ship

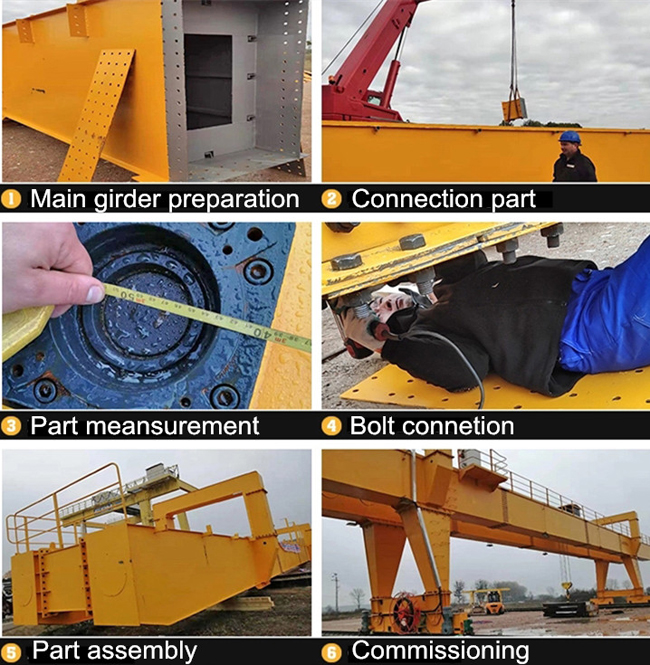

Installation and Commissioning
Product Certificate

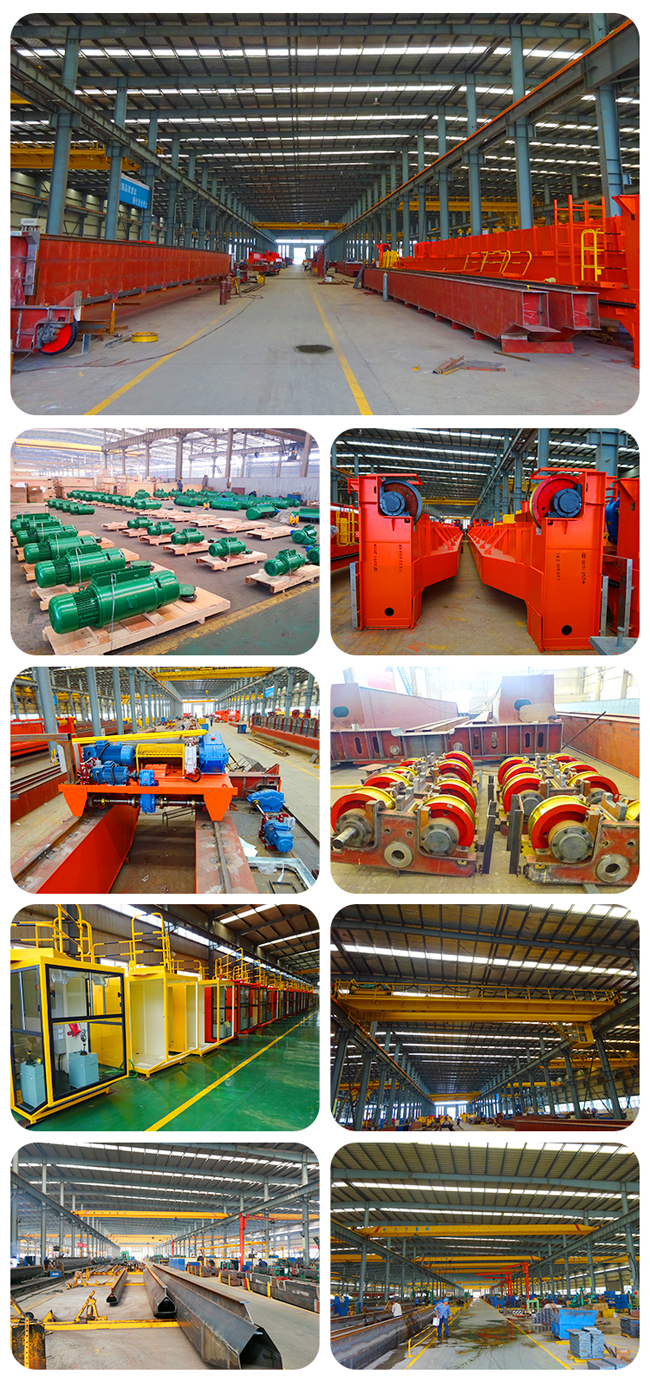

Our Factory
